主要用途与简单介绍/Brief introduction：

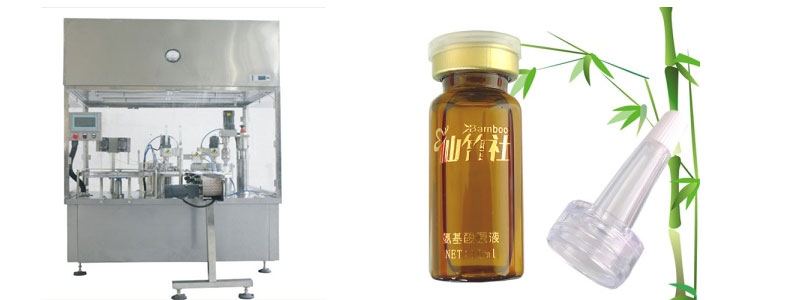

超声波焊接机是在引进人才和吸取在国外先进典型方法的根基上，应该由我公司服务性研发团队的三款正规专业专门针对西林瓶的分装、上塞、旋（轧）盖机。超声波焊接机采取日全入口高精密等级关闭式凸轮轴测量范围工作台面器，计算精度等级高，启动耐用，运用用到期长。该测量范围器形式简洁，长期的运用就不需要维修保养。该机型包括常使使用在不同的小用量全自动的分装、压塞及旋（轧）盖，如精油功效、皮下注射剂等。大范围使使用在食品类、化工类、化工类邻域及科技邻域。该机型既可电脑单机研发，又可与洗瓶机、干躁机等的设备成分协作研发线。仍然非常符合标准GMP规定。该机型是可以可根据业主规定升阶电力工程显卡配置。NFGX-5/50 Automatic Vial Filling&rotation (rolling) machine is built in the absorption of foreign advanced tecnology, based on independently developed by the company ,It is the domestic leading level.This machine is suitable for a variety of small doses of liquid filling&capping such as oil, injection . Widely used in food, pharmaceutical, chemical industries and scientific research.  Single machine can produce, but also with washing machine, dryer and other equipment linked production line. Full compliance with the GMP requirements. The machine according to customer requirements to upgrade the electrical configuration

性能/Characteristic:：

◆组排程序界面确定、进行操作更直观方面、PLC掌握，装量*。Human-machine interface settings, an easy and intuitive, PLC control, the amount of precision equipment. ◆变频柜调低、制作强度任一调低、主动记数。Frequency control, the production rate be adjusted automatically count  ◆系统自动停止系统，无瓶不灌装设备。No bottle no filling.◆圆筒市场定位式罐装，稳定性牢靠。Disc positioning filling, stable and reliable.◆容栅等级凸轮机构测量范围计把握，定位系统*。High-precision cam meter control, precise positioning.◆选择SUS304及316L不锈钢板加工，是完全适合GMP想要。SUS304 and 316L stainless steel, full compliance with GMP requirements.

方法性能参数/ technical parameters：

装量领域Filling volume	5-50ml
装量随机误差loading error	≤ ±1%
旋（轧）盖合格品率 Rotation (rolling) Cover pass rate:	≥99%
制造力量Production capacity	30-60瓶/分 钟  低速档 70-100瓶/分 钟 &nb💛sp;   高速收费站 30-60 bottles / min  70-100 bottleꦑs / minute (high speed)
压塞率Tamponade rate	≥99%
供电 Power	380V/50Hz
耗油率Power	2.0 kw
服务器重量Net weight	600 kg
内部结构规格尺寸 Dimension	2000*1000*1500mm
