功用与简单介绍：/Purpose and introduction

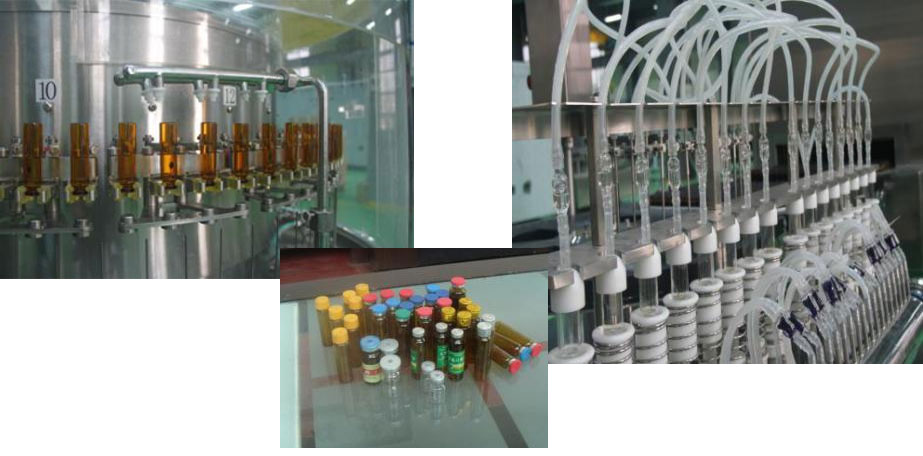

服食液洗烘灌轧协作线由卧式高周波波洗瓶机、隊道式内嵌套循环 嵌套循环灭菌处理处理干燥箱、服食液分装轧盖机等组合成，适于 5-30ml 等有差异 规 格服食液瓶的产出加工。可顺利完成对货品产出加工中安瓿瓶淋水、高周波波除污、冲水、充 气、烘干机灭菌处理处理、降温、分装、轧盖等工艺技术方法步骤的协作运作。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

结构特征:/characteristic

◆洗瓶机采用了自动化工业机械手夹瓶，符合多种不同金桥铜业跨接线的截面积大小的水瓶座；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶采取雾水喷针导杆关注插进方法，的清洗使用质量好，节俭电力能源。并设在针架防颤动平衡装置，提供喷针插进塑料瓶的正确度，避免断针的现象发生了；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶这个雾水蒸汽管道、喷针根本自由分开单独进行，防止了交差影响，具备GMP规范标准需求；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶罗杆前改加减慢块，有保护性罗杆，增多碎瓶目的Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶按照整体布局进口的微信同步带，接入拨块气流输送口服药液，正常运作安全稳定靠普In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆恒温干燥箱主要采用红外线烧水管，不锈钢304烧水管双重烧水温湿度竖直性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆灌装设备轧盖机必选配陶瓷图片泵、304不锈钢泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆灌装生产线无瓶止灌，无瓶不轧盖作用。Pieces filling without bottle filling, no bottle no rolling function.◆整线适用PLC总调控、变频式器、摸屏调控水平，正常正常运作稳固能信。摸屏可表现各单机手机游戏的正常正常运作情形，各调控点的水流量、压力表、静压、溫度等表现，各电开关情形和出现问题的表现，出现问题的自我发展程度和出现问题的探讨及除掉方法步骤。使这个产量操作过程超过机械自动化化调控，联线含有三机电气动态平衡控制系统，确定产量匀衡能信。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.随着消费者的还要，还可供配置：According to the needs of customers, but also available for selection:◆欧姆龙、德力西、三凌、台达等牌子控住系统的；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气学习压力、油温及超声检查波挠度、浮尘微粒、风速等级线测试、报警灯、收录、彩打系统性。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、灭菌隔开器系统软件。Mixer ORABS, CRABS, aseptic isolator system.

技术应用运作：technical parameters

适合规模Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
罐装表面粗糙度Filling accuracy(%)	≤ ± 2.5
装罐头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖合格证率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
