使用与详细介绍：Purpose and introduction

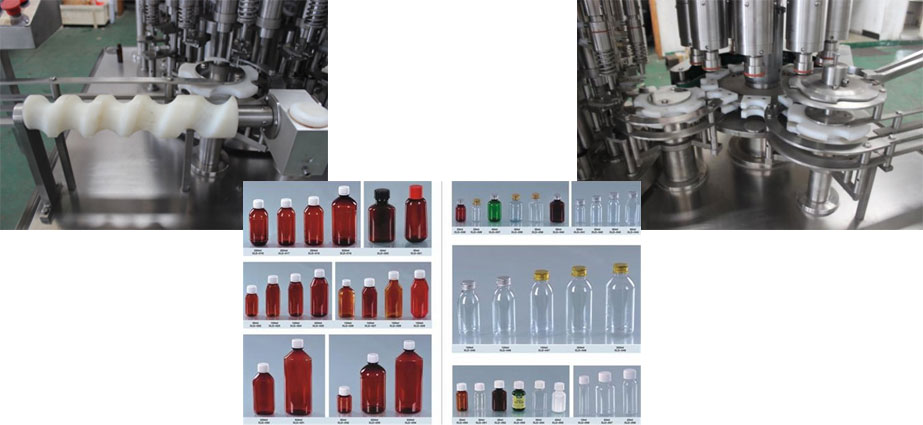

该机适用性于对30-500ML产品玻璃窗瓶、塑瓶的装罐塑封处。选用往来账户交往式活塞杆完成装罐，电磁能谐振送盖，能能轧盖(废金属式)或旋盖(塑盖)塑封处，能能和先后的产生工艺程序设备快速连接结构产生线，不仅如此能能设计装修百级层流罩。This machine is suitable for the filling and sealing of 30-500ml series glass bottles and plastic bottles. The reciprocating between piston filling, electromagnetic oscillation send cover, cover (metal) can be rolled or screw cap (plastic cap) sealing. Can produce and the produce of the process equipment before and after connecting line. In addition, the laminar flow hood is available for selection.

优点：characteristic

装量精确度，杜尽漏滴。缺瓶不罐装。 交流变频变频调速。 自主表明计算功能主治。 整体均按GMP规定设计。The filling amount is accurate, as Du drip. Lack of bottle does not fill. Frequency control of motor speed. Active display count. The machine according to the GMP request design.

的系统参数表/technical parameters：

型号 model	NQGX30-500
可用金桥铜业跨接线的截面积大小Cutting dimension	30-500ml
主产地功能Production capacity	80-200瓶/分（罐/秒钟）80-200 bottles/min (cans/min)
装罐精确度 Filling accuracy	≤±1%
外接电源 Power	380V/50Hz
旋（轧）盖率Spin (rolling) cover rate	≥99%
功率power	3.0 kw
自动化设备净重量 Machine weight	1500 kg
外形尺寸 boundary dimension	3000*1100*1700mm
